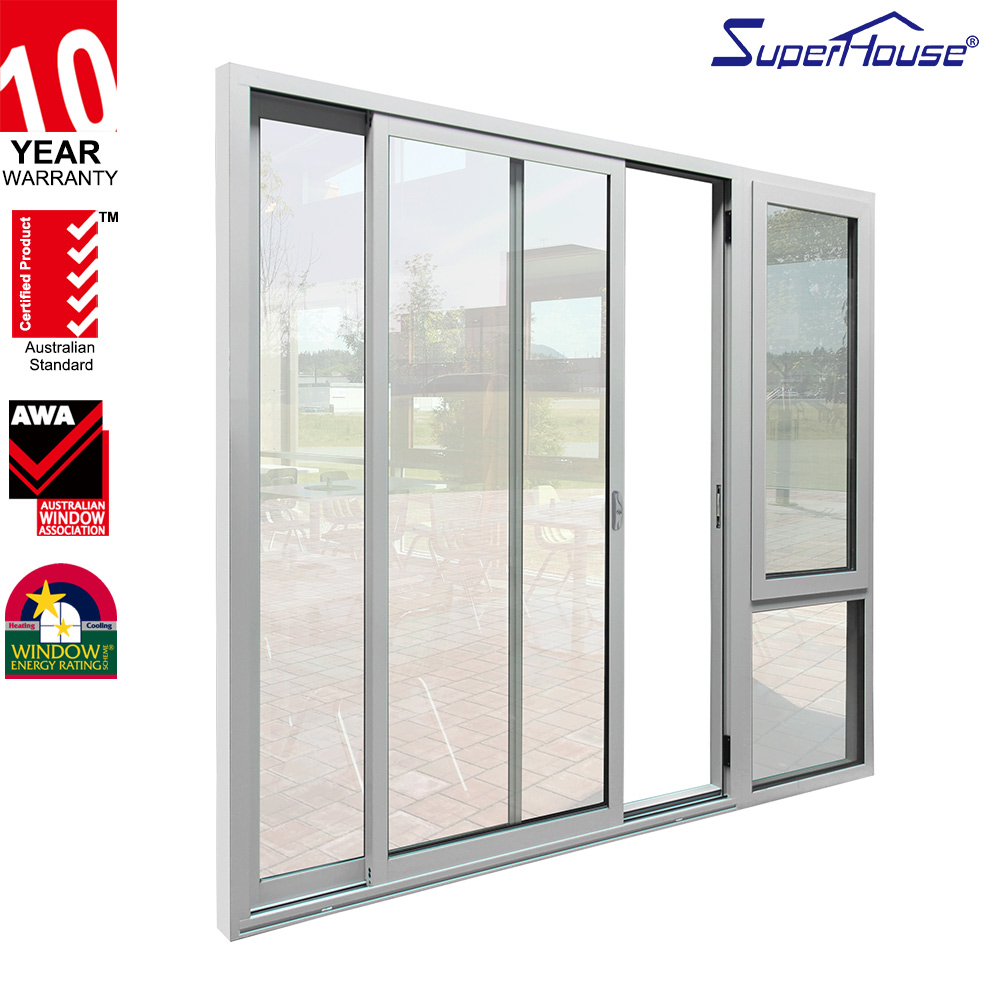

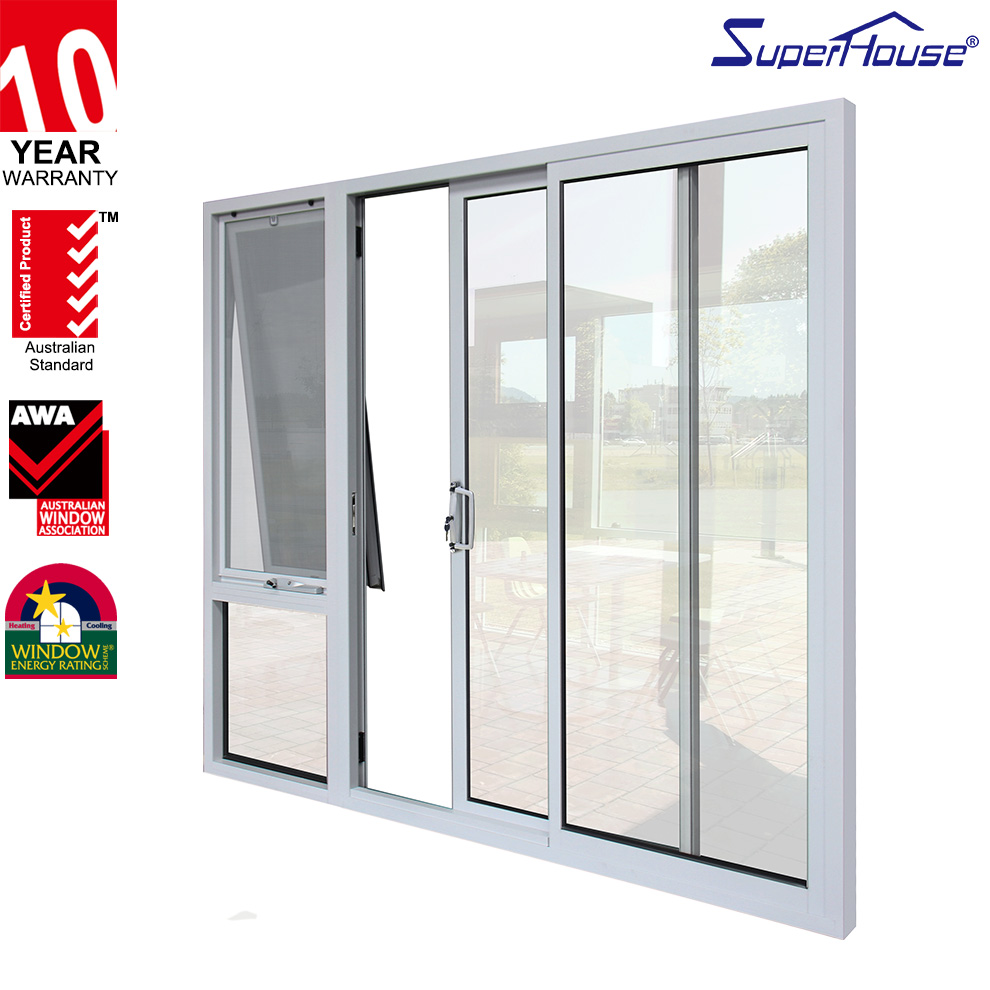

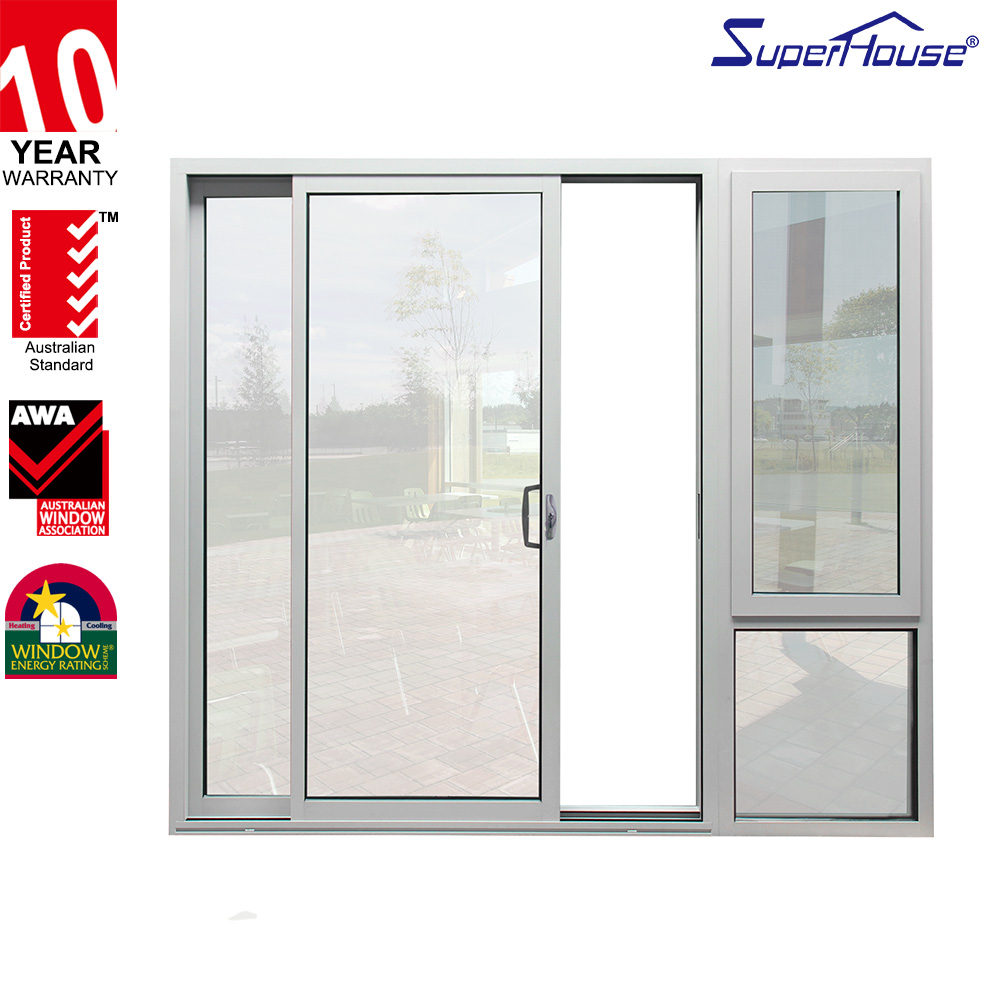

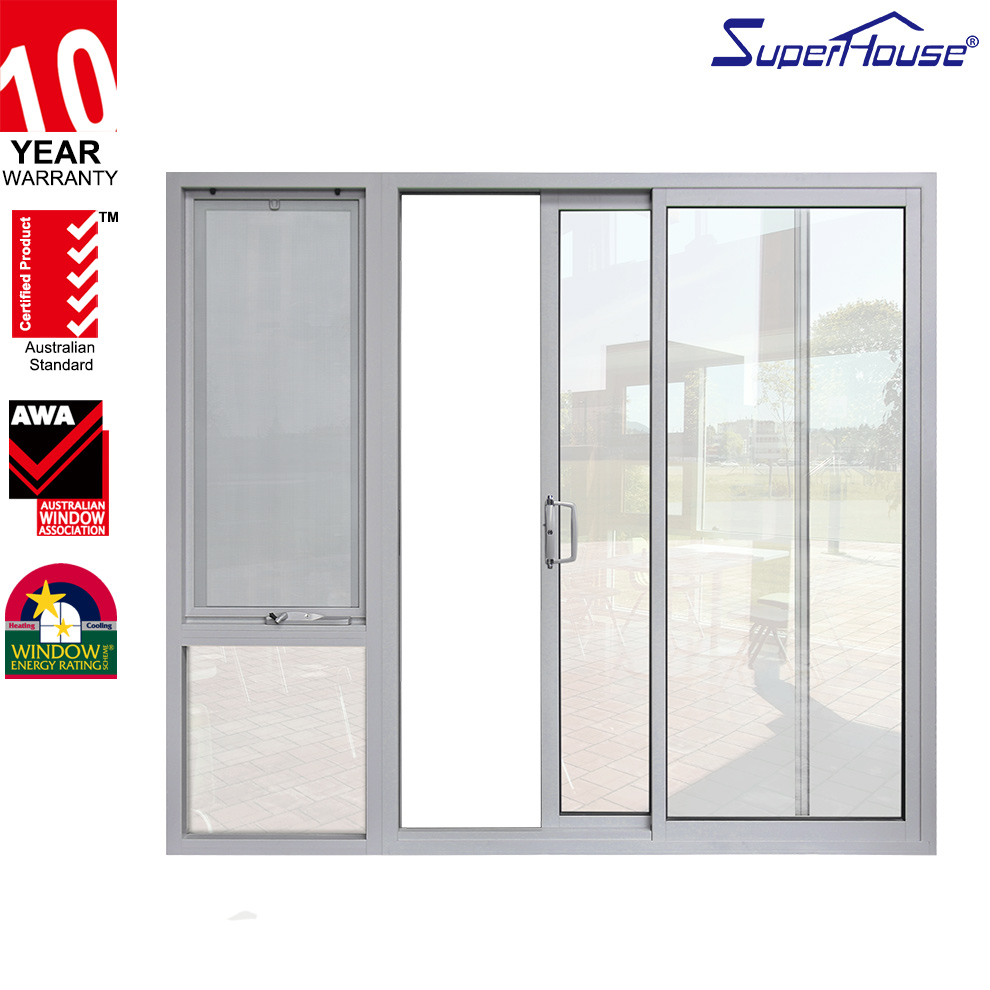

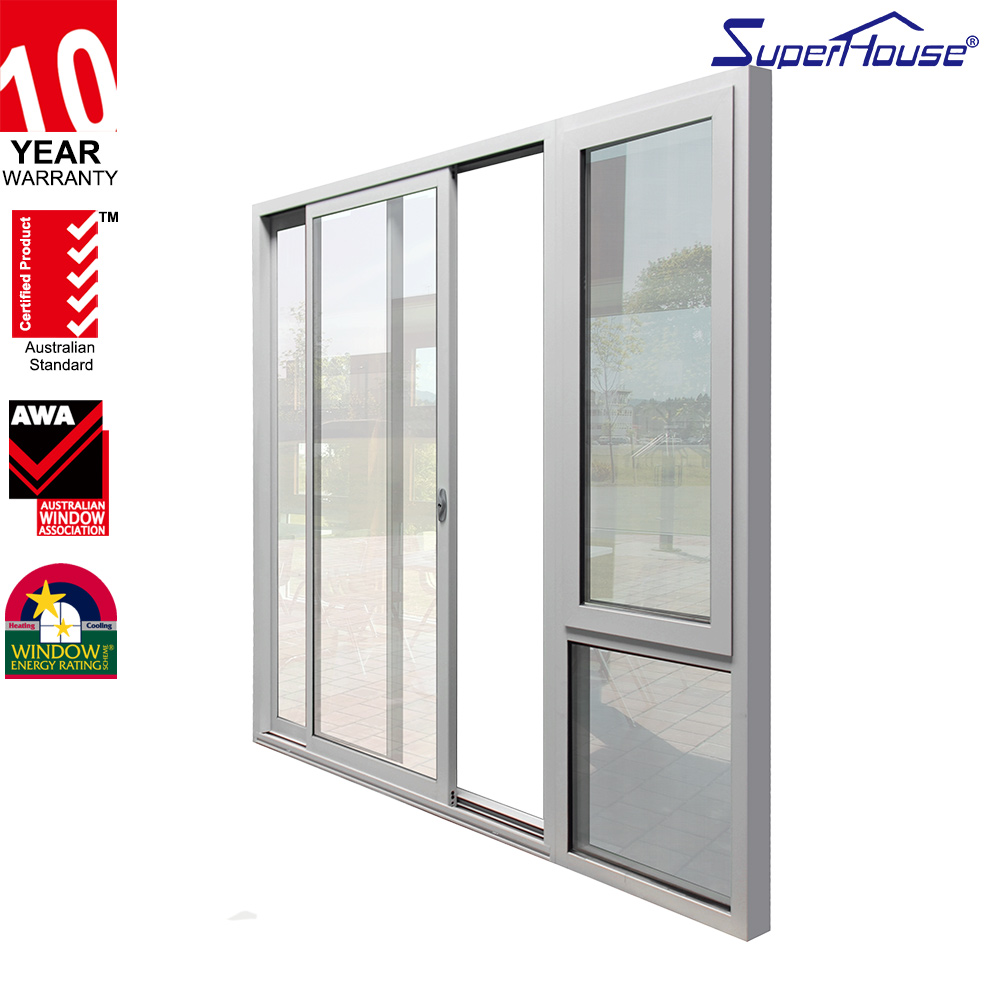

Superhouse 2/3/4 Panel Auto Aluminum Sliding Patio Exterior Door System

Product Overview

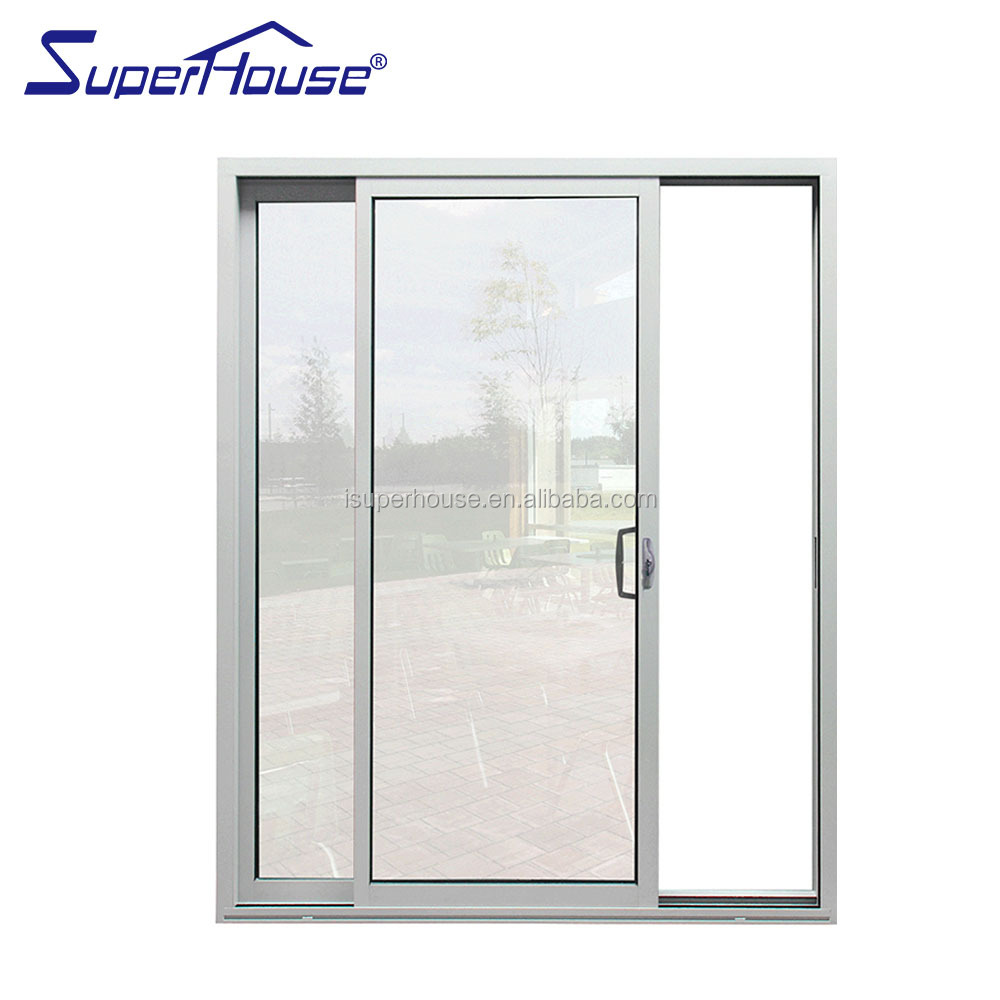

Auto Aluminum Sliding Patio Exterior Door System Panel 1

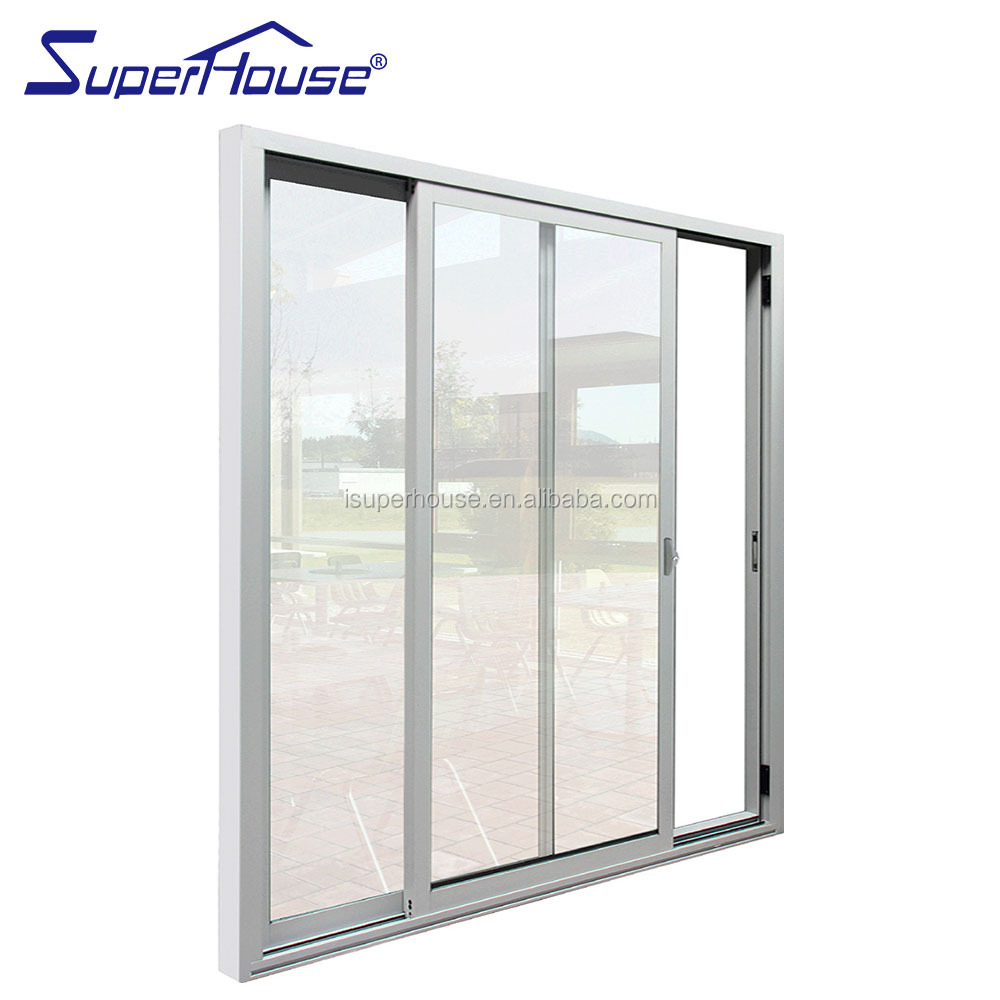

Auto Aluminum Sliding Patio Exterior Door System Panel 2

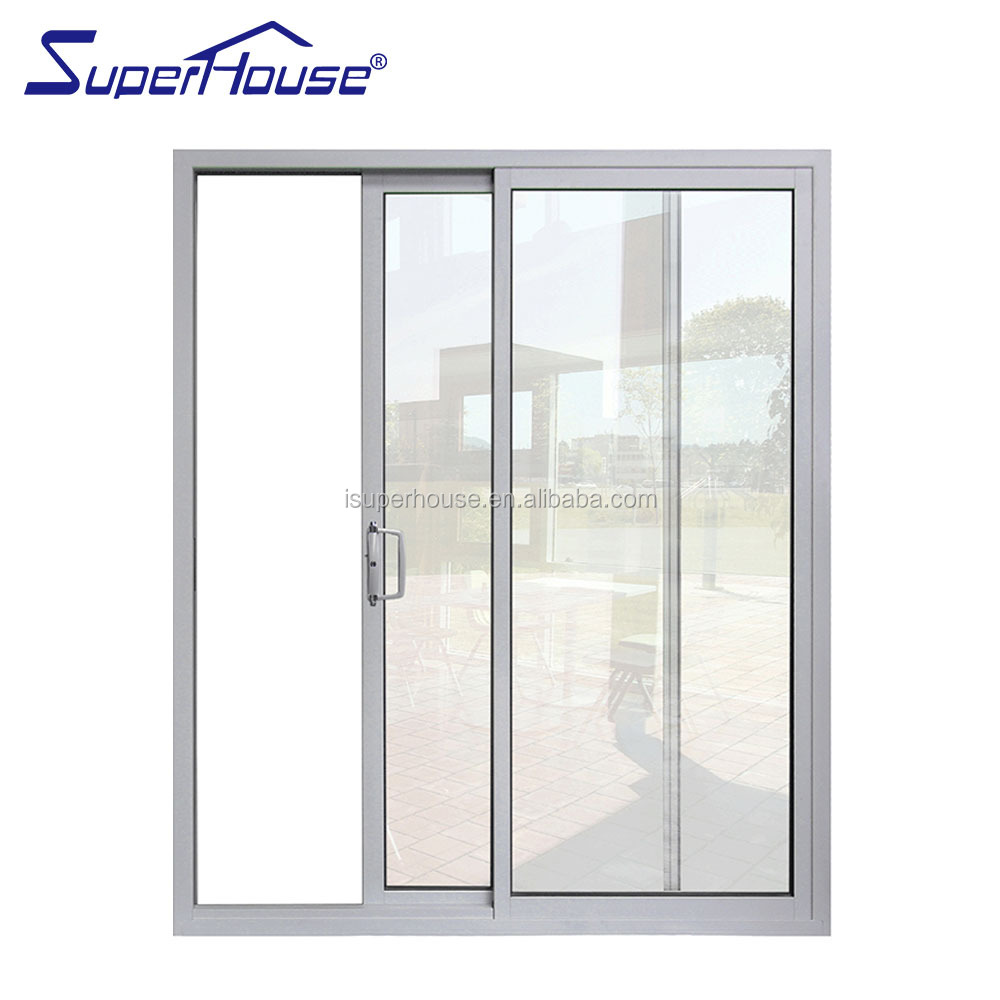

Auto Aluminum Sliding Patio Exterior Door System Panel 3

Performance Specifications

Wind Pressure

Serviceability Design: 1500 Pa

Rating: N4

Air Infiltration Test

Standard: AS4420.4-1996

+75 Pa / -75 Pa: 0.11 L/s·m²

Water Penetration Test

Standard: AS4420.5-1996

Test Pressure: 900 Pa

Rating: N6, C4

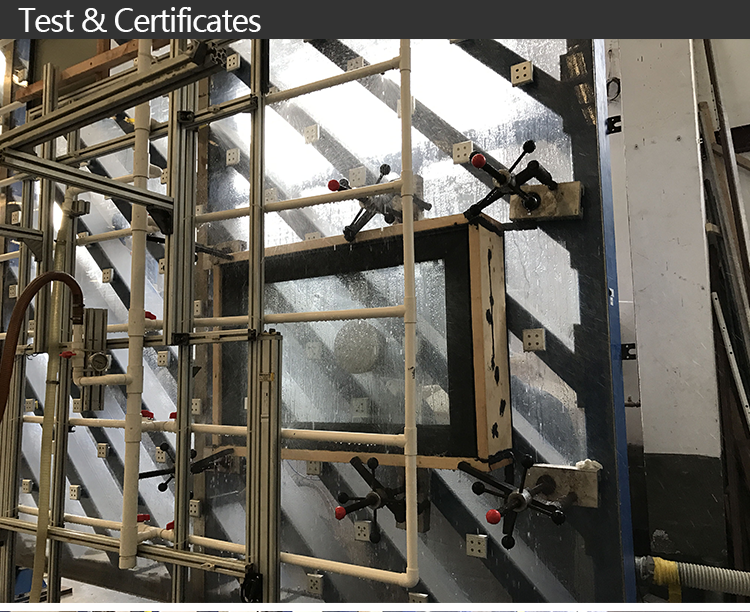

Ultimate Strength Test

Standard: AS4420.6-1996

Test Pressure: 4500 Pa

Rating: N4

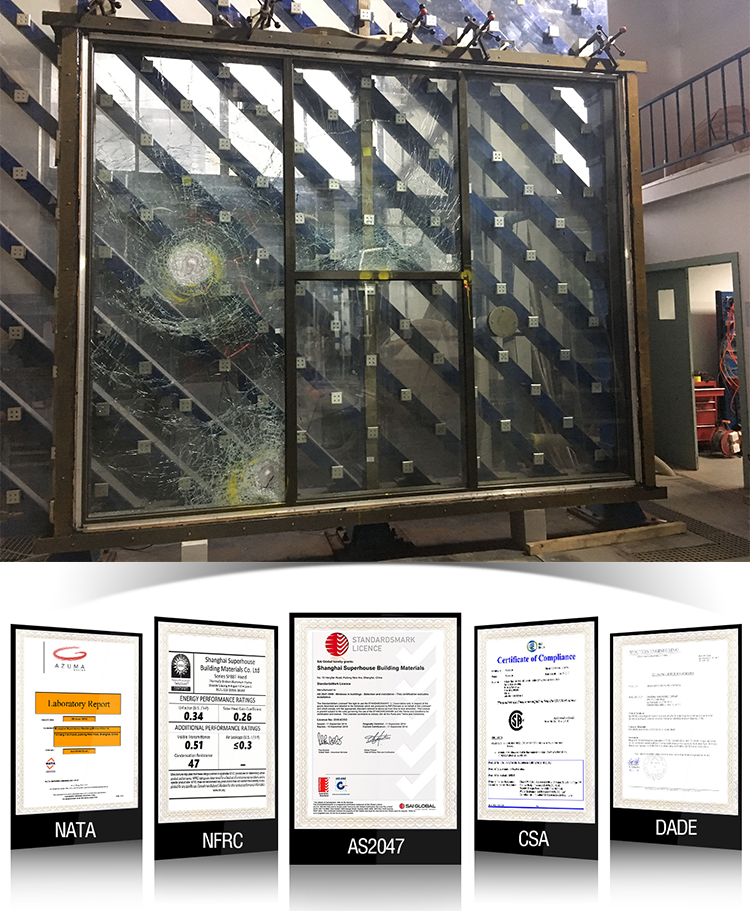

Certifications & Standards

Approved by Australian Window Association, SAI Global, and TUV.
Member of Australian Window Association with 10 years warranty guarantee.
Fabricating aluminium windows & doors strictly according to AS2047 standards.
Member of Window Energy Rating Scheme (WERS).
Glass compliance with AS2208 & ANSIZ97.1 standards.
Comply with American NFRC and Miami Dade testing requirements.

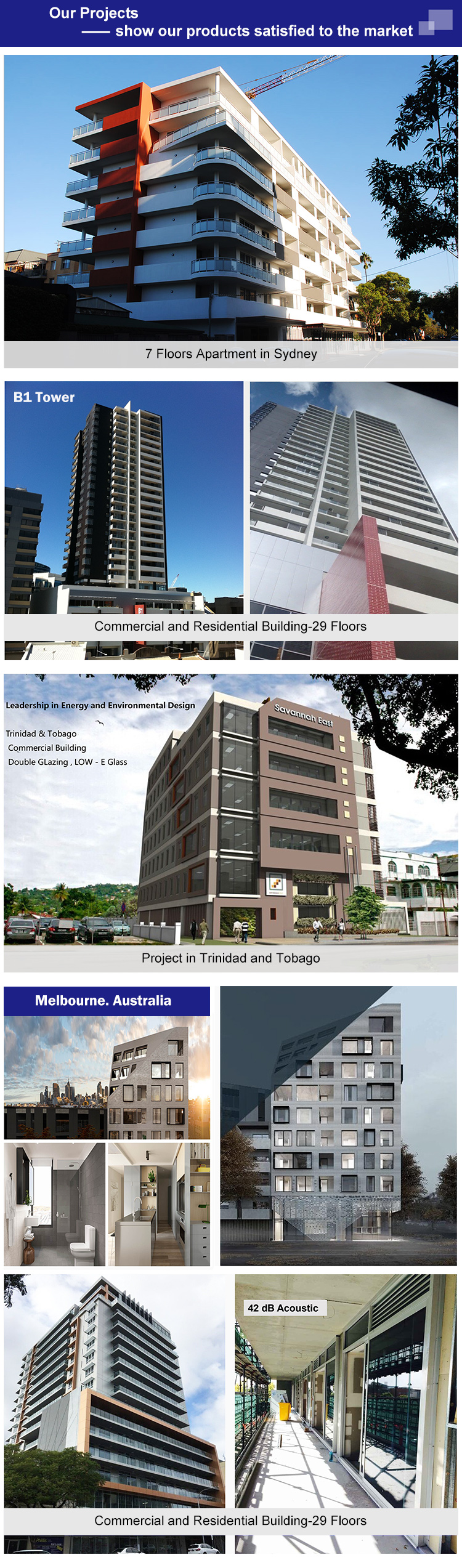

Project Cases

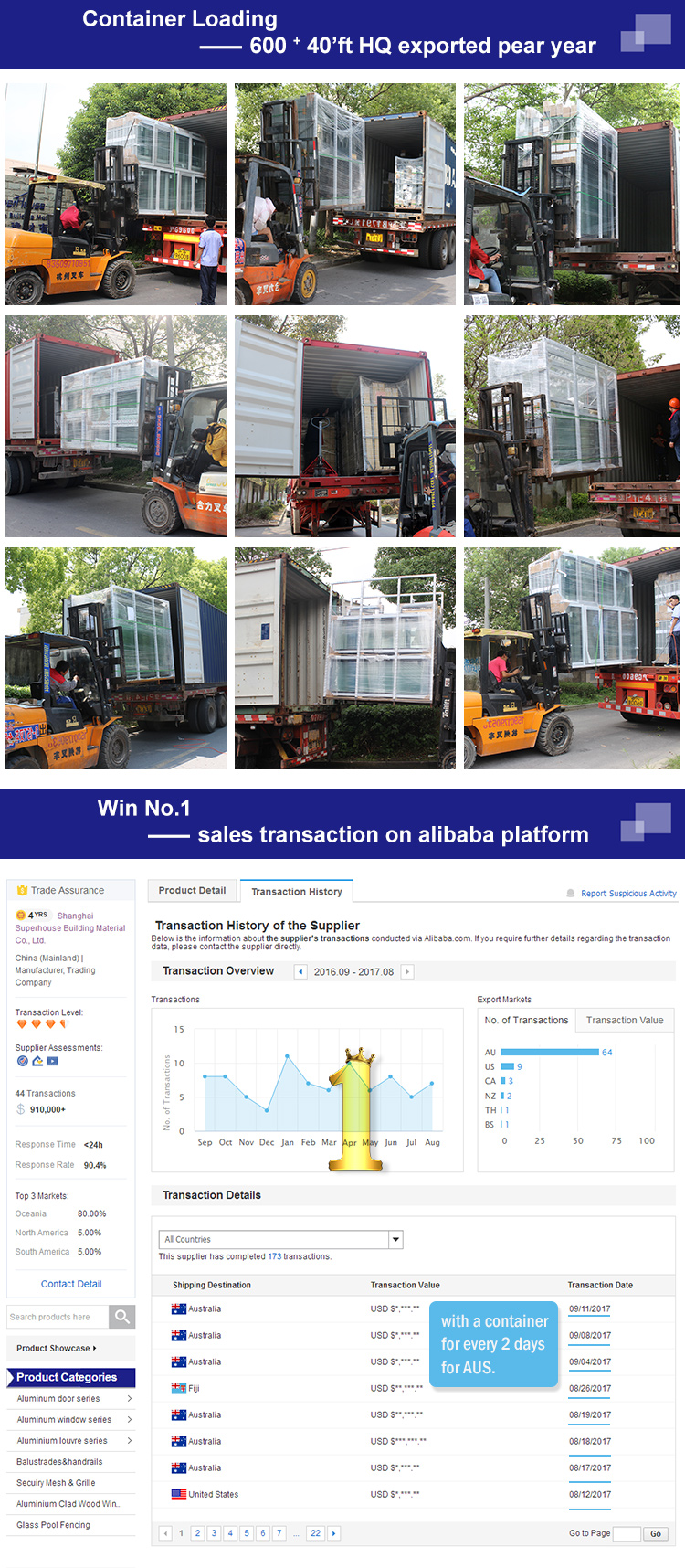

Packaging & Delivery

Packaging Steps	Protective tape protects frames from scratches. Keep windows or doors fixed securely on iron pallets. Tie up windows or doors on the iron pallets with plastic belts. PE films keep units away from sea water moisture. Fill space between each two iron pallets with air bags. Tie up iron pallets inside container with plastic belts. * Packages ensure windows and doors arrive at project job site in optimal condition.
Delivery Detail	38-50 days upon final confirmation of project specifications and drawings.

Packaging Steps

Protective tape protects frames from scratches.
Keep windows or doors fixed securely on iron pallets.
Tie up windows or doors on the iron pallets with plastic belts.
PE films keep units away from sea water moisture.
Fill space between each two iron pallets with air bags.
Tie up iron pallets inside container with plastic belts.

* Packages ensure windows and doors arrive at project job site in optimal condition.

Delivery Detail

38-50 days upon final confirmation of project specifications and drawings.

Frequently Asked Questions

Do your door systems meet the AS2047 Standard?

Yes, all doors and windows meet the official AS2047 standard. Additionally, the glass component complies with AS2208, UL, and EN standards to serve international requirements.

What is the typical manufacturing lead time?

The manufacturing timeframe is typically 38 to 45 days upon receiving the deposit and confirmed shop drawings, as aluminum extrusion profiles require processing time.

Are customized designs and dimensions accepted?

Yes, customized designs, configurations, and dimensions are fully supported to match specific architectural and engineering requirements.

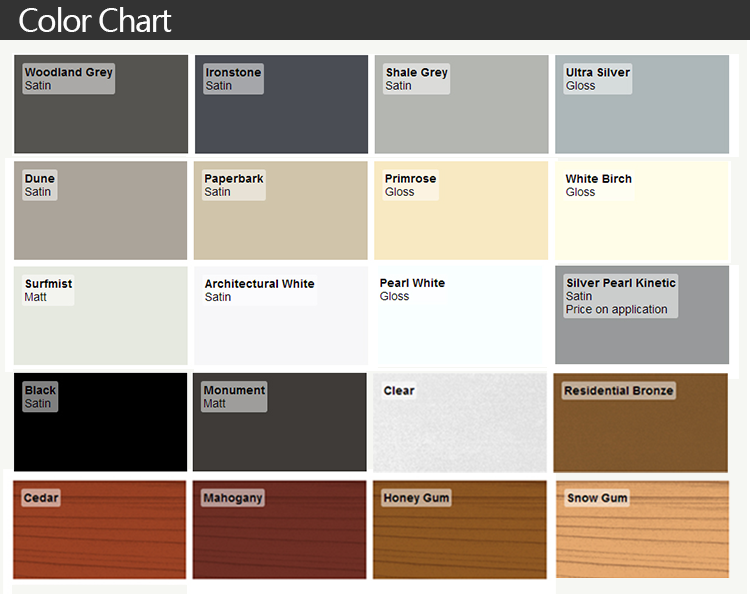

What color options are available for the profiles?

Colors are available from Colorbond, RAL palettes, Interpon coatings, or customized according to provided physical color samples.

What brands of hardware are used in the sliding doors?

We provide top-quality hardware options including leading German brands, Australian brands, and top-tier domestic brands depending on customer preference.

How are products packaged to prevent ocean shipping damage?

Products are wrapped with protective film, strapped to sturdy iron steel pallets, wrapped in PE protective film, and stabilized inside shipping containers using protective air bags.
